Renault Megane 2, Phase 2, 2008. Outside temperature.

[sorix]

I have a Renault Megane 2, Phase 2, 2008. TEYES SPRO+ radio tape recorder installed and canbus Hiworld LNF1.10 H1N4LNF10A, connected to the car's CAN bus. But I run to display the outside temperature on the radio.

The outside temperature sensor is connected to the UCH and transmitted to the CAN BUS(only Megane 2, Phase 2).

Please add the outside temperature CAN-code to the Hiworld LNF1.10 H1N4LNF10A canbus firmware.

[HIWOORD SONG]

For this model year, the radio does not support displaying the outdoor temperature.

[sorix]

The factory radio has temperature support — see the photo:


Please add temperature support for the Megane 2 to CANBUS Hiworld and send a new update file .iap for LNF1.10 H1N4LNF10A

[HIWOORD SONG]

We obtain vehicle data from the cable at the rear of the head unit, not from the screen wiring harness; which cable are you using for the installation?

[sorix]

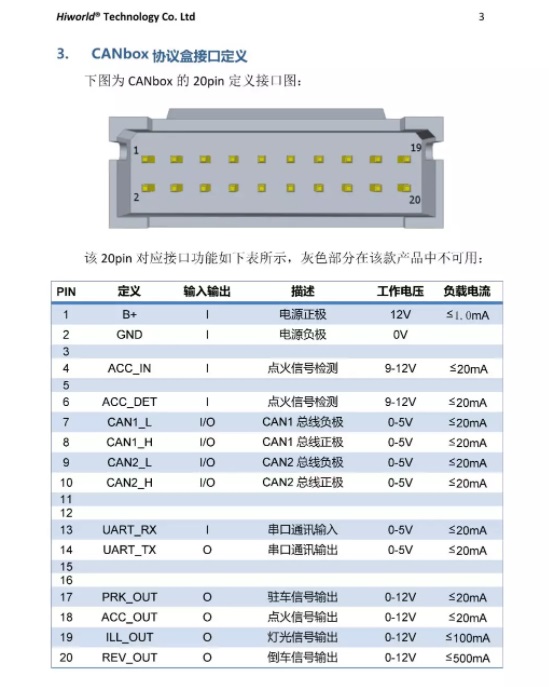

I connected the CAN-BUS adapter to the vehicle's CAN bus using additional wires via the OBD-II connector:

CANBox pin 7 (CAN1_L) is connected to OBD-II pin 14 (CAN-L).
CANBox pin 8 (CAN1_H) is connected to OBD-II pin 6 (CAN-H).

The CAN bus connection has been completed correctly, as the Android head unit correctly displays the door-open status.
