Canbus data for Nissan Leaf

[Kirito0016]

Just post a link for canbus data of Nissan Leaf.

https://github.com/dalathegreat/leaf_ca ... me-ov-file

[Kirito0016]

Got NSF1.20 canbus box, and installed in my car with bunch list tested.

On Nissan Serena 2023 all.
Steeringwheel button works but difference (Prev is next, next is prev, phone is mute, voice is phone)
Door info work.
Source Instrument Cluster work (FM-USB-CD-etc), time sync work.
A/C info almost but errors.
Auto switch to orignal 360 camera when parking or proximy alert (radar warning) does not work.


VID_20250114_112211.mp4

(22.41 MiB) Downloaded 888 times

[Kirito0016]

Is there any chance add new Leaf on list with temperature display?

[vodynoj]

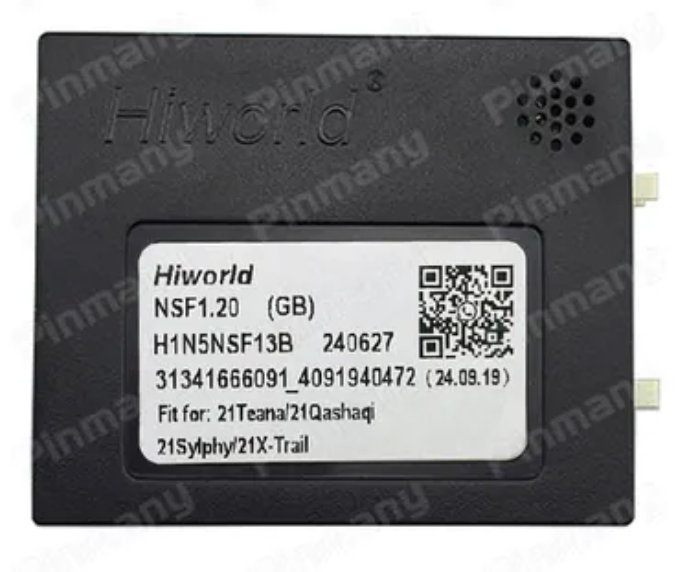

I got the NSF1.20 canbus unit and installed it in my car, checked the list.

Hello. Have you changed the firmware and installed the original unit?

[Kirito0016]

I got the NSF1.20 canbus unit and installed it in my car, checked the list.

Hello. Have you changed the firmware and installed the original unit?

No I did not, it is android hu

[vodynoj]

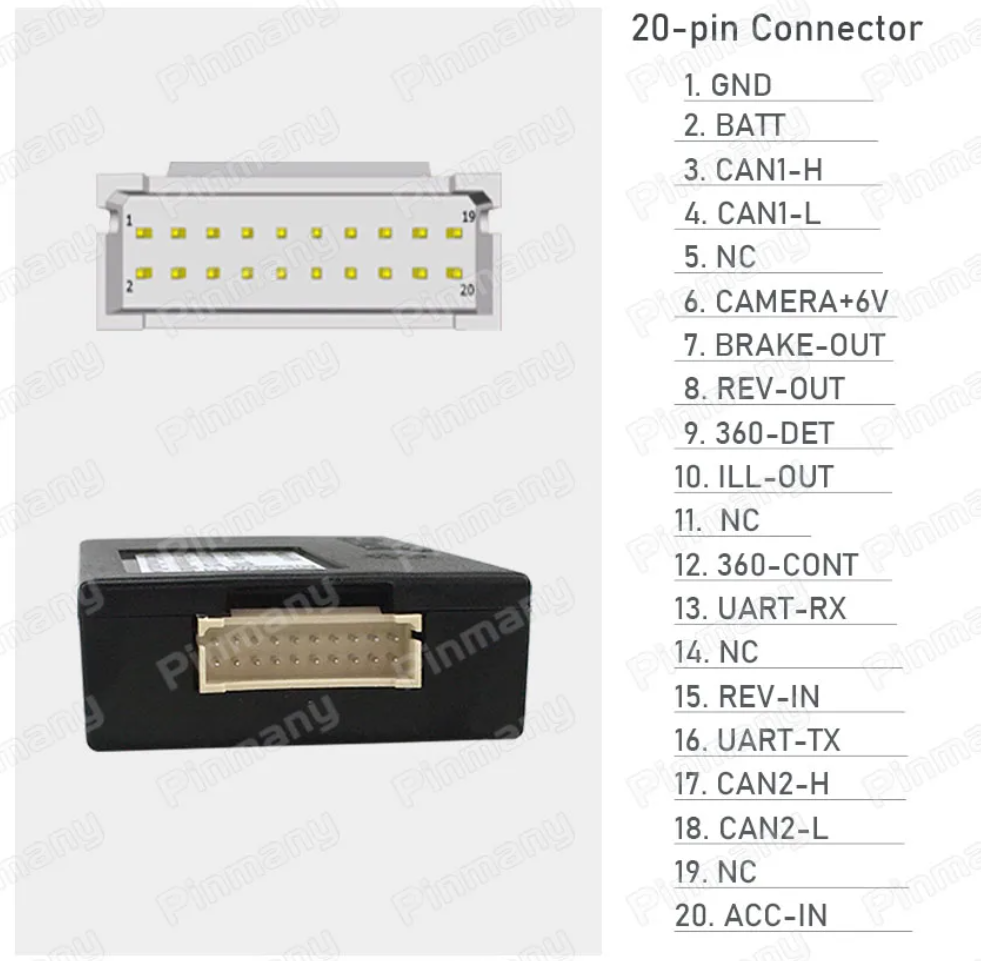

Hello. Do you have the opportunity to see which firmware is on your hi world 1.20? I got one from aliexpress, but it always has 12 volts on the android 8 pin reverse gear. I connected only the power supply and the can lines.
